Sliding doors MasterPatio

Created by masters
Top quality without compromise

Crafted by Masters

MasterPatio is the manufacturer’s most popular lift-and-slide system. Outstanding thermal performance and recycled materials make this premium solution the perfect addition to any eclological project.

Sustainable through recycled materials and reduced waste during production

Compatible with our MasterLine 8 system, converting it into an easy to produce floor-to-ceiling facade

Standard high-insulating system with high-rise ready performances

Explore all variants

Infinite possibilities

01. Type

The open corner variant gives much more design freedom and the impression of more space.

02. Energy

The standard variant is already sufficient in many regions, but the High Insulation variant further improves this situation.

03. Safety

The system is available in an anti-theft version for added peace of mind.

Other

The standard variant offers a symmetrical design with the same profiles for fixed and sliding vents and 2-rails.

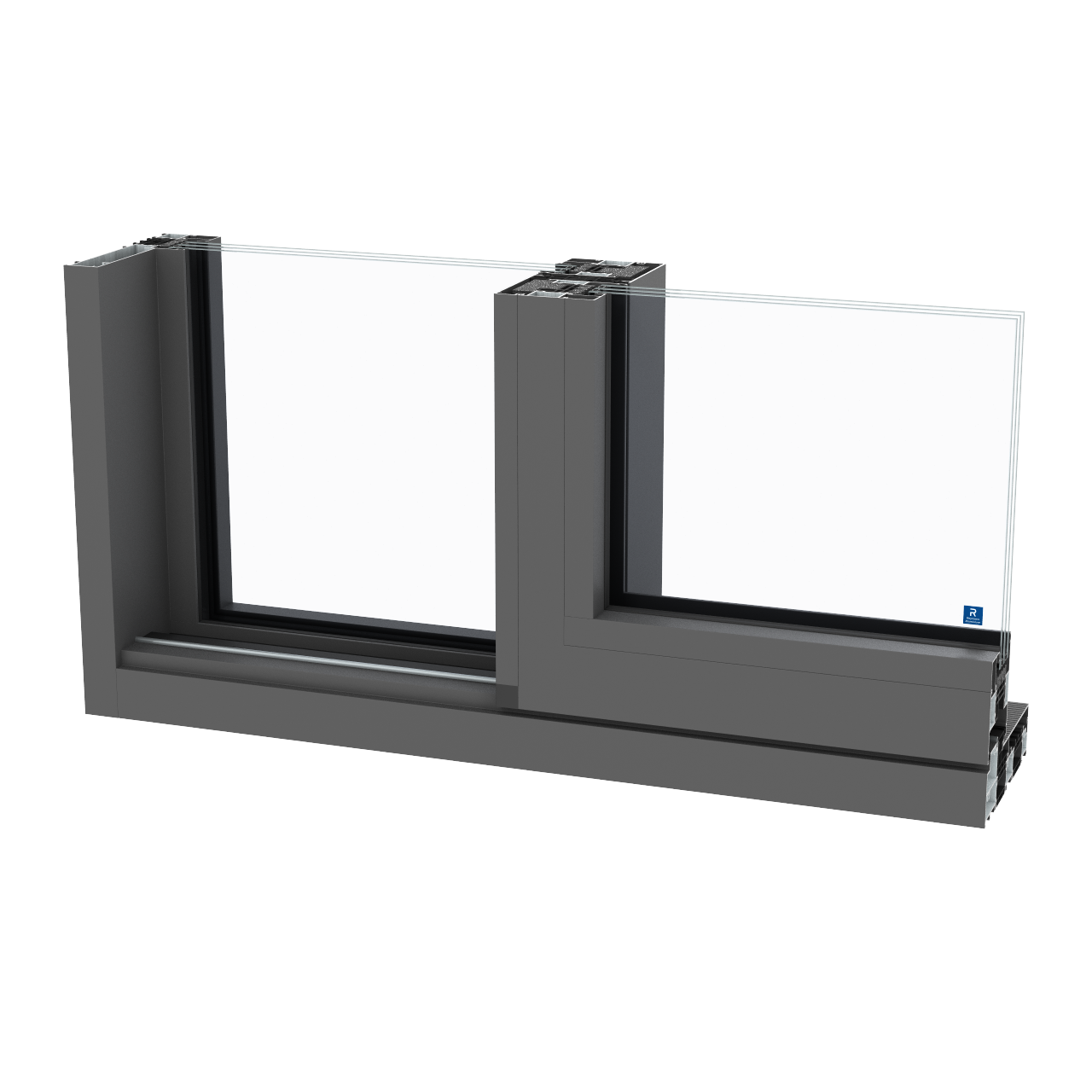

The monorail variant has no sash profiles on the fixed side, giving it an asymmetrical appearance. Glazed on the inside for a higher level of security.

The monorail variant has no sash profiles on the fixed side, giving it an asymmetrical appearance. Glazed on the outside for easy installation of heavy glazing.

Product options

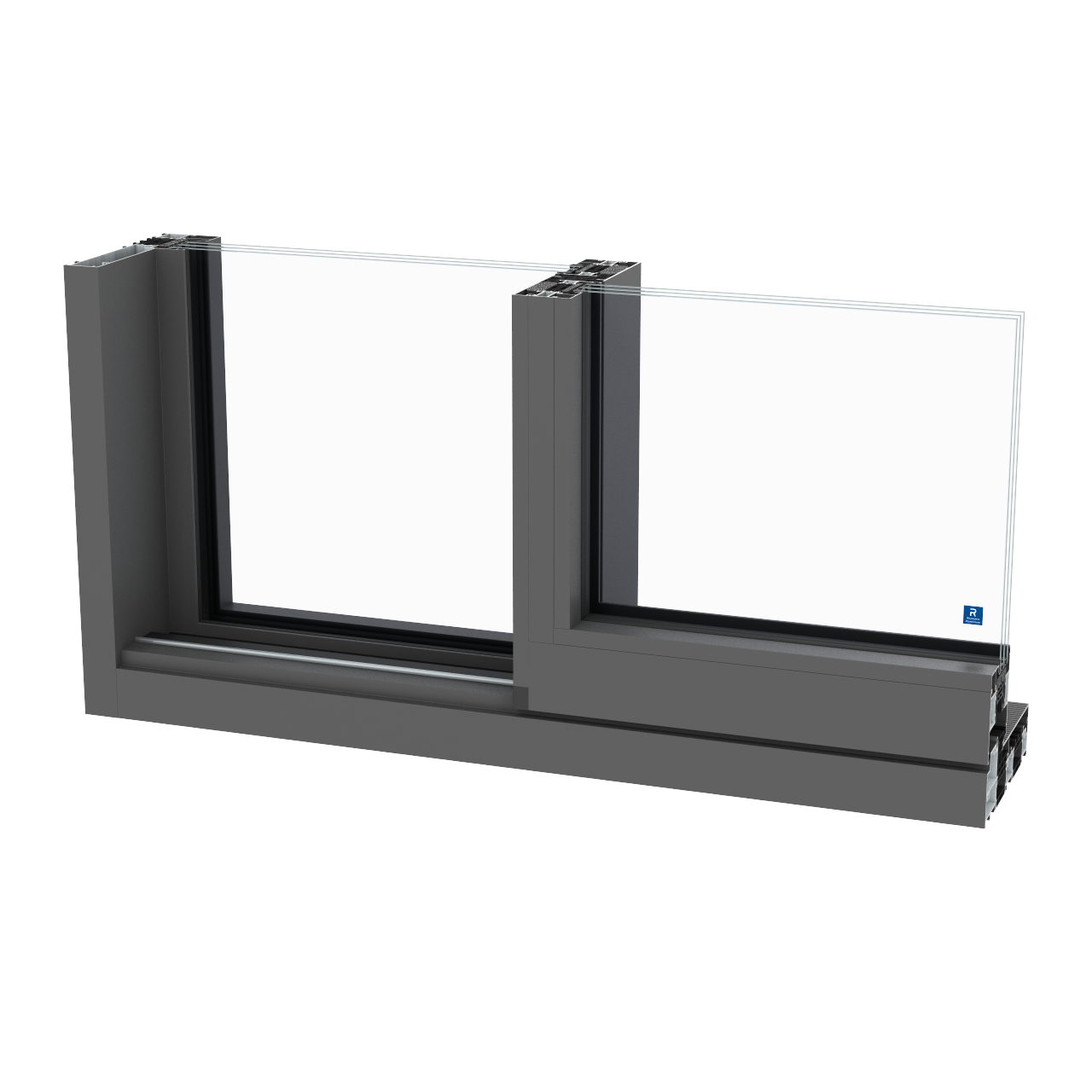

Slim Chicane

Increasing the transparency of the window where it is most visible.

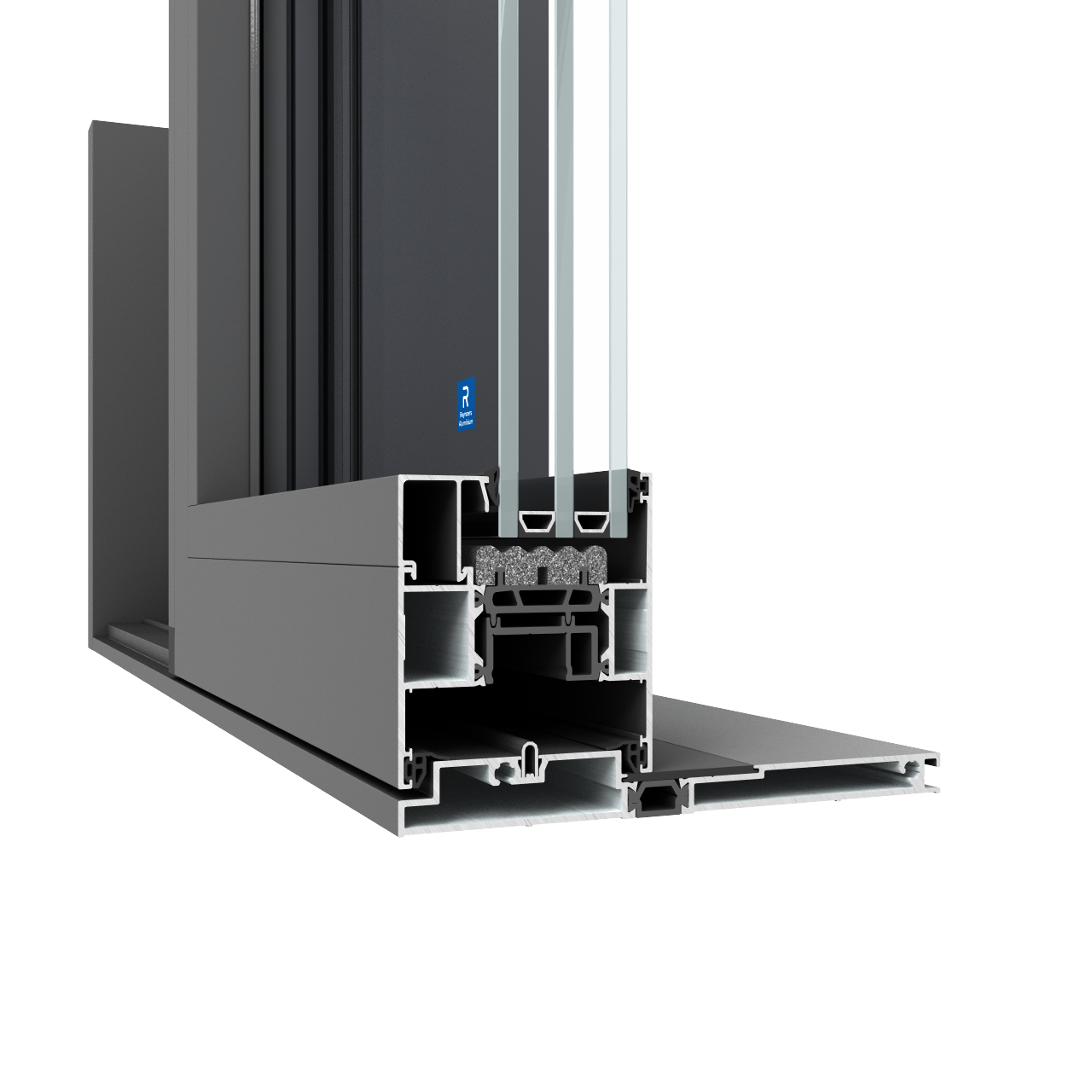

Low Threshold

Easy access, cleaner look.

Zero Threshold

Entrance without boundaries, even with continuous flooring.

Access Control

Making your home smart and connected.

Motorised

Comfortable to use, even remotely.

Softclose

Combines safety and comfort.

Gutter

Better water performance, without adding thresholds.

Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

Flyscreen

Enjoy cool summer evenings, without losing sleep.

Balustrade

Safety can equal beauty.

*Performance and properties depend on size, profile combinations, hardware and infill choices. Please contact Profal Kielc.

Finishing options

Unparalleled range of colors and finish types

Looking for a different color?

You can choose from a palette of as many as 450 colors.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v

Looking for a different color?

You can choose from a palette of as many as 450 colors.
Parameters

Technical details

Thermal insulation
Passive
Acoustics
Extreme
Acoustics
Ekstrmalne
Rw(C;Ctr) = 44(-1;-4) dB
Burglar Resistance
High
PAS 24 - RC2
Max weight
Vent = 500 kg
Fixed = 1200 kg

Performance

Energy

Thermal insulation
Uf = 0,8 W/m²K

Comfort

Air tightness
Class 4 (600Pa)
Water tightness
Class E1200 (1200Pa)
Wind load resistance
Class C5 (2000Pa)
Acoustics - Rw(C;Ctr)
44(-1;-4) dB
Opening & closing resistance regulation
Class 4

Safety

Burglar resistance
RC2- PAS 24
Impact resistance
I4

Properties

Max. dimensions & weight

Min. height of vent
1800 mm
Max. width of vent
3000 kg
Max. height of vent
3600 mm
Max. weight of vent
500 kg
Min. width of vent
700 mm
Max. weight of fixed part
1200 kg

Sightlines

Min. width 4-pane
181 mm
Depth frame-vent
180 mm
Min. width meeting section
50 mm
Depth frame monorail
24.2 degrees
Min. width T-profile
50 mm
Depth frame 2-rail
180 mm
Min. height treshold
4 mm
Depth frame 3-rail
283 mm
Depth Vent
77 mm

Glazing

Rebate height
27 mm
Min. glass thickness - vent
16 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - External glazing - Glazing bead
Max. glass thickness - vent
62 mm

Panoramic windows in elegant black profile

reynaers aluminium profielen

A unique component identifier provides access to a wealth of information in seconds, eliminating the need for manual searches. A quick scan provides instant access to all system and technical details specific to a component, as well as documentation, certifications and manufacturer contact information.
