Aluminum doors ConceptSystem 77

Optimum safety and comfort
Find out more
Top quality without compromise

Optimal safety and comfort​

Concept System® CS 77 includes the highest quality panel door systems that meet even the most stringent standards for thermal insulation, stability and safety. When it comes to ensuring safety, the various door models have been specially designed and tested to check their burglary and bulletproof properties and their effectiveness in panic situations, to meet even the most stringent European standards. The standard series of panel doors is available in all possible variants of opening inwards and outwards, equipped with various types of locks to meet the individual needs of the customer. In addition, the CS 77 panel doors offer various types of thresholds to meet all aesthetic and functional requirements. In order to ensure the tightness of the doors, special seals have been used that protect against possible bending of the structural element under the influence of temperature differences inside and outside the building.

Available in extreme security variants, including bulletproof

Wide range of finishes and constructions

Well-balanced price-quality-function ratio

Explore all variants

Infinite possibilities

01. Design options

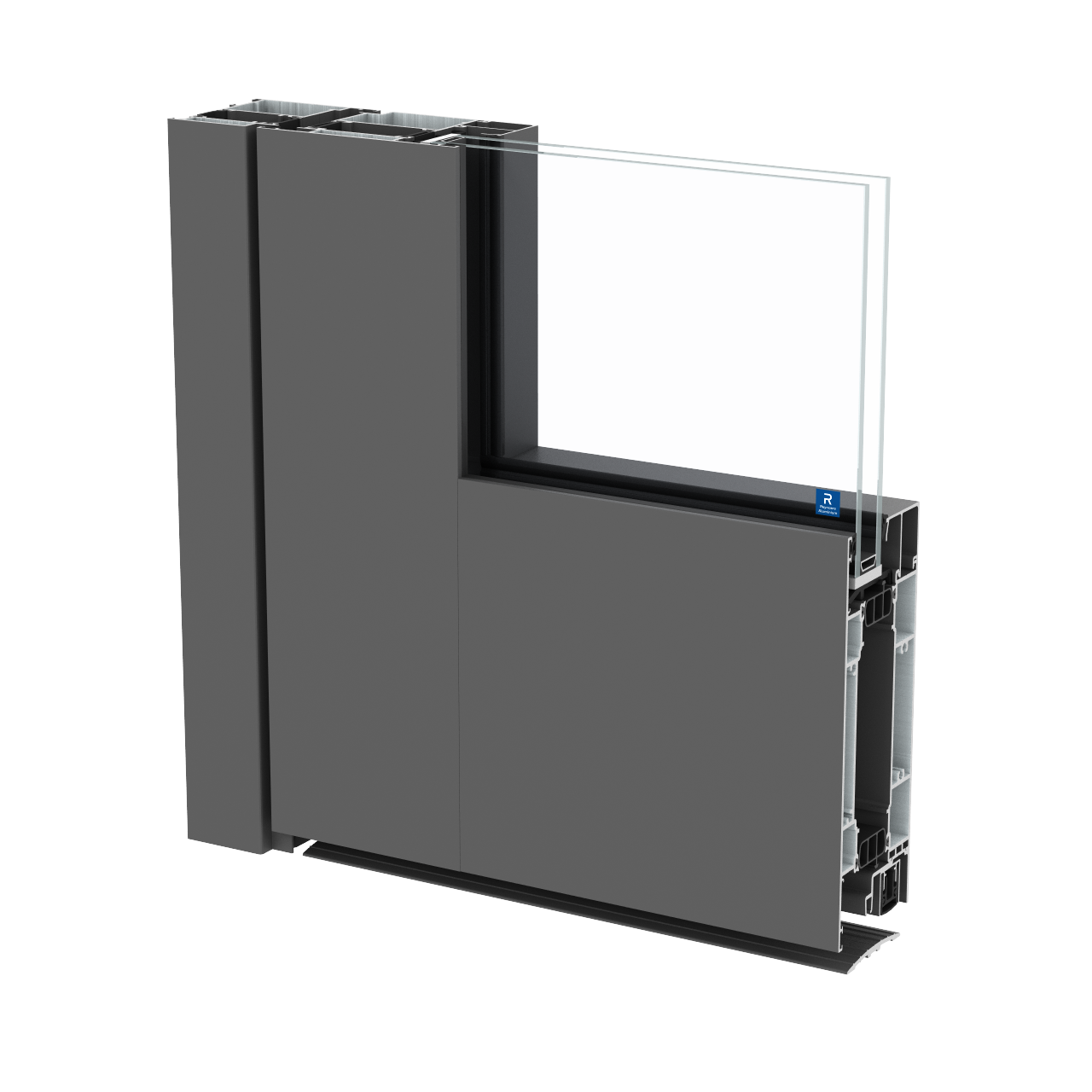

The standard product offers a Functional style, which means it will fit into any building.

Stylish panel doors are available in several variants, including double-sided panels and glass.

02. Energy options

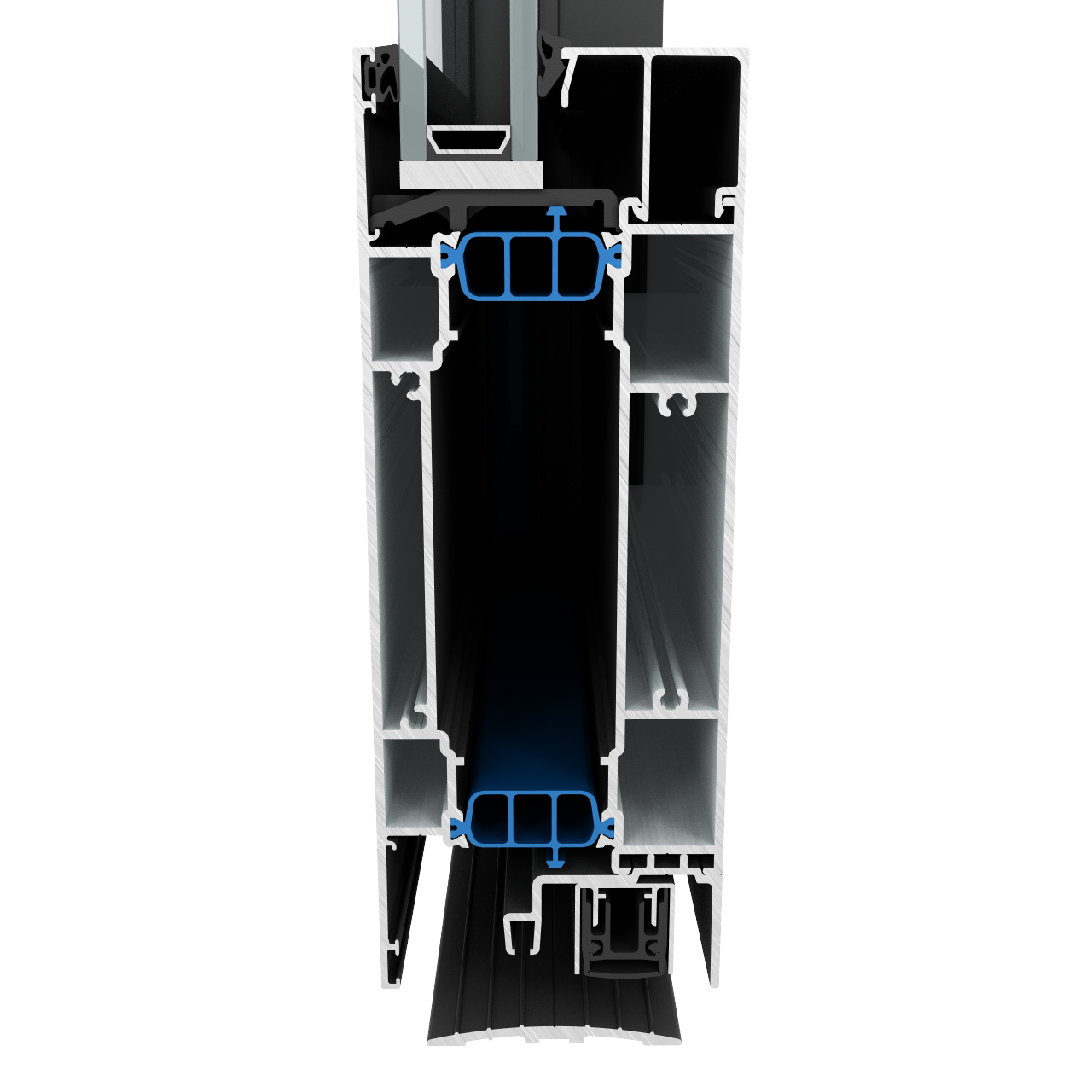

This product line extends the range of insulation levels.

03. Security options

Some designs require bullet resistance, this variant meets these requirements in many classes.

This variant helps to meet fire resistance requirements in several classes to increase the time to escape in the event of a fire.

Product personalization options

Low threshold

Easy access, neat appearance.

Fretless

Barrier-free entry, even with floor finishing.

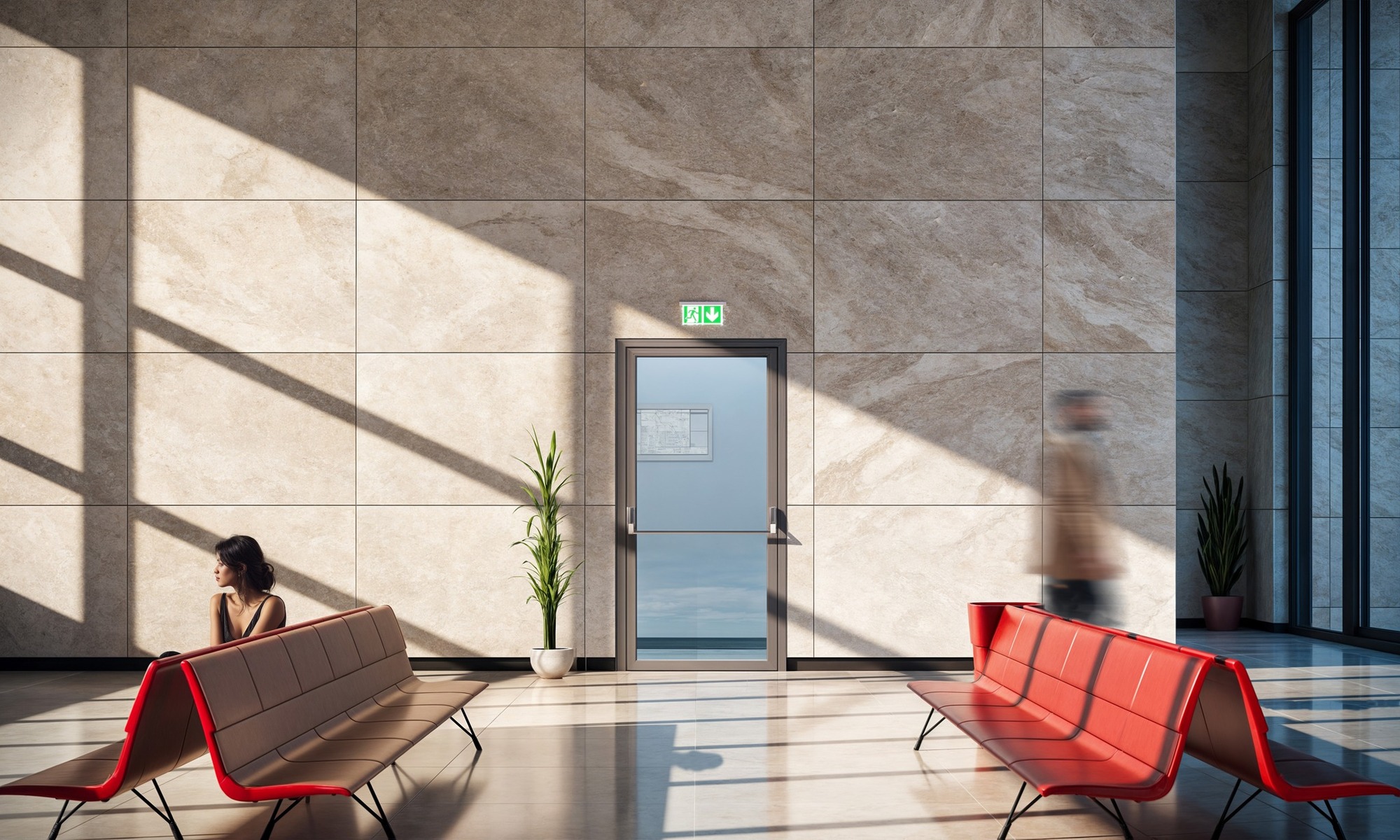

Emergency

Tested and proven, for peace of mind.

Access control

Smart and interactive home.

Hidden hinges

For a good look, details count, hidden hinges are the best finish.

Silent closing

Combines comfort and safety.

Hidden Drain

No more plastic caps, enjoy clean design.

*Available options depend on profile selection and configuration. Please contact Profal Kielc consultant.

Finishing options

An unparalleled range of colors and finishes

Szukasz innego koloru?

Możesz wybrać z palety aż 450 barw.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v

Looking for a different color?

You can choose from a palette of up to 450 colors.
Parameters

Technical details

Thermal insulation
High Uf = 1.8 W/m²K
Tightness
High
Acoustics
High
Tightness of the ventilation hole in the frame
Min 150 mm
Wing height
Min 500 mm
Max 3000 mm

Efficiency

Energy

Thermal insulation
High Uf = 1.8 W/m²K

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
42(-1;-4) dB
Waterproof
Class 7A (300Pa)
Resistance when opening and closing
Class 8
Wind load resistance
Class C2 (800Pa)

Bezpieczeństwo

Burglary resistance
RC2 - RC3 - PAS 24
Fire resistance
EI₁ 30 - EI₂ 30 - EI₂ 60 - EW 30
Impact resistance
I5 - E5
Bullet resistance
FB4 - FSG - FB6 - Kalashnikov

Properties

Maks. dimensions and weight

Min. wing high
500 mm
Maks. wing mass
250 kg
Maks. leaf height
3000 mm
Maks. mass of the solid part
280 kg
Maks. leaf width
1400 mm

Visible lines

Min. frame width (opening inwards)
68 mm
Min. width of the T profile
76 mm
Min. door width (opening inwards)
76 mm
Min. threshold height
0 mm
Min. frame-wing width (opening inwards)
150 mm
Frame depth
68 mm
Min. frame width (opening outwards)
42.5 mm
Wing depth
68 mm
Min . door width (opening outwards)
102,5 mm
Frame-wing depth
68 mm
Min. frame-wing width (opening outwards)
150 mm

Glazing

Rebate height
25 mm
Maks. glass thickness - frame
52 mm
Glazing method
Szklenie suche - Szklenie silikonem - Szklenie od wewnątrz - Listwa szkoląca - Listwa szkląca
Min.glass thickness - leaf
4 mm
Min. glass thickness - frame
4 mm
Maks. glass thickness - leaf
52 mm

Panoramic windows in an elegant black profile

reynaers aluminium profielen

The unique item identifier provides access to a wealth of information in seconds, eliminating the need for manual searching. A quick scan provides immediate access to all system and technical details specific to the item, as well as documentation, certifications and manufacturer contact information.
