Aluminum windows EcoSystem 50

Simply clever
Najwyższa jakość bez kompromisów

Simply smart

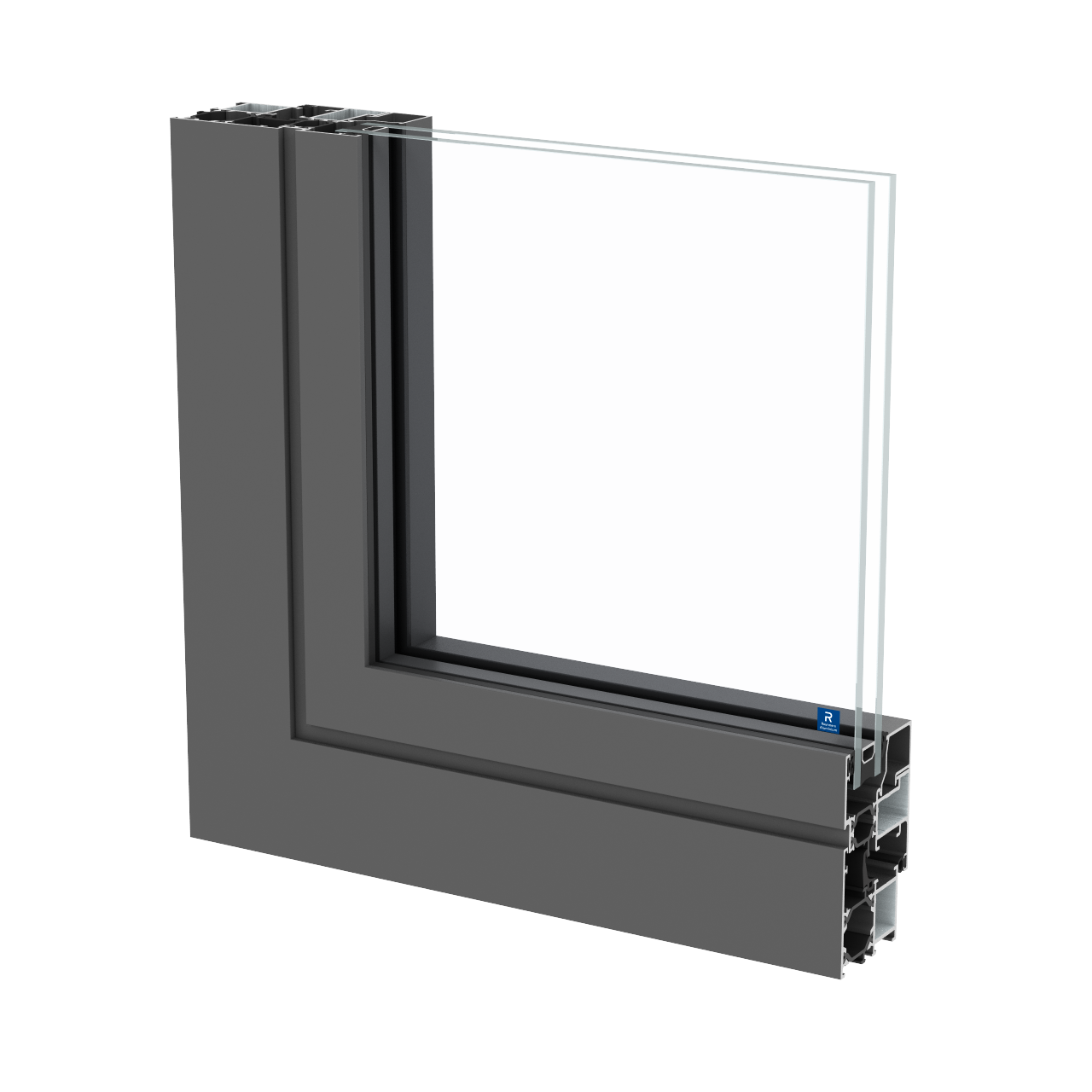

EcoSystem 50 is a quality system for windows and doors that combines aesthetic design and energy efficiency. Thanks to the optional, cleverly hidden hinges and a minimal built-in depth, this aluminium solution sports a minimalistic look.

Well balanced price-quality-feature mix

Minimal build-in depth for insulated system

Reduced visible height for fixed windows and opening windows

Explore all the variants

Infinite possibilities

01. Design

The standard window system has a minimal built-in depth in a flush design.

02. Safety

This product is compatible with a building's SHEV system to extract smoke and heat quickly.

Product options

Concealed Hinges

The details are the design, concealed hinges are the finishing touch.

Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

Flyscreen

Enjoy cool summer evenings, without losing sleep.

Balustrade

Safety can equal beauty.

*Performance and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative for more specific information.

Finishing options

Unparalleled range of colours and finish types

Looking for another color?

You can choose from a palette of up to 450 colours.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v
Parameters

Technical details

Thermal insulation
Uf = 2.6 W/m²K
Air-Water-Wind
High
Acoustics
Medium
Burglar resistance
RC2
Height vent
Min 700 mm
Max 2200 mm
Frame-Vent Width Open In
Min. 86 mm

Efficiency

Energy

Thermal insulation
Uf 2.6 W/m²K
Uw 1.5 W/m²K
Uw Dependencies
Frame-vent: Ug 1.0W/m²K, warm edge spacer, @1.23x1.48m (92mm sight line), 24mm glass

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
38(-1;-2) dB
Water tightness
Class 9A (600Pa)
Opening & closing resistance
Class 2
Wind load resistance
Class C4 (1600Pa)

Safety

Burglary resistance
RC2

Properties

Max. dimensions and weight

Min. height of vent
700 mm
Max. width of vent
1600 mm
Max. height of vent
2200 mm
Max. weight of vent
120 kg
Min. width of vent
500 mm

Sightlines

Min. frame width (inward opening)
48 mm
Min. frame-vent width (outward opening)
99.5 mm
Min. vent width (inward opening)
30 mm
Min. width T-profile
70 mm
Min. frame-vent width (inward opening)
86 mm
Depth frame
50 mm
Min. frame width (outward opening)
21 mm
Depth Vent
59 mm
Min. vent width (outward opening)
73 mm
Depth frame-vent
50 mm

Glazing

Rebate height
22 mm
Max. glass thickness - frame/element
32 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - External glazing - Glazing bead
Min. glass thickness - vent
4 mm
Min. glass thickness - frame/element
12 mm
Max. glass thickness - vent
32 mm

Panoramic windows in an elegant black profile

reynaers aluminium profielen

Easy access to the digital product passport

A unique item identifier provides access to a wealth of information in seconds, eliminating the need for manual searches. A quick scan provides instant access to all system and technical details specific to the component, as well as documentation, certificates and manufacturer contact information.
