Curtain walls ElementFaçade 7
A building block for a better future
Modern buildings are designed to meet ecological, technical, functional, aesthetic and financial requirements. Building environments use existing systems to their maximum potential, so our latest ElementFaçade 7 goes beyond today’s needs. Reynaers Aluminum’s global product development team has translated years of experience and extensive knowledge in various fields into intelligent design.
ElementFaçade 7 has a completely redesigned anchor to allow for easy and quick installation and adjustment, as well as increased tolerance ranges that can compensate for ever-increasing payloads. EF 7 also optimizes industrial production with the introduction of a simple corner connection (profiles cut at 90 degrees) and further increases installation speed with the ability to assemble even larger double pieces.
In addition, ElementFaçade 7 allows easy replacement of the glass panel in both the structured glazing and glazing strip variants, for the element itself and for the opaque part of the facade. All these features make the system ready for the buildings of the future.
Brochures and documentation
Download the brochures and technical documentation – Curtain walls ElementFaçade 7.
Download filesQuality marks and certificates
Infinite possibilities
Click the buttons below to discover all variants.
Design options

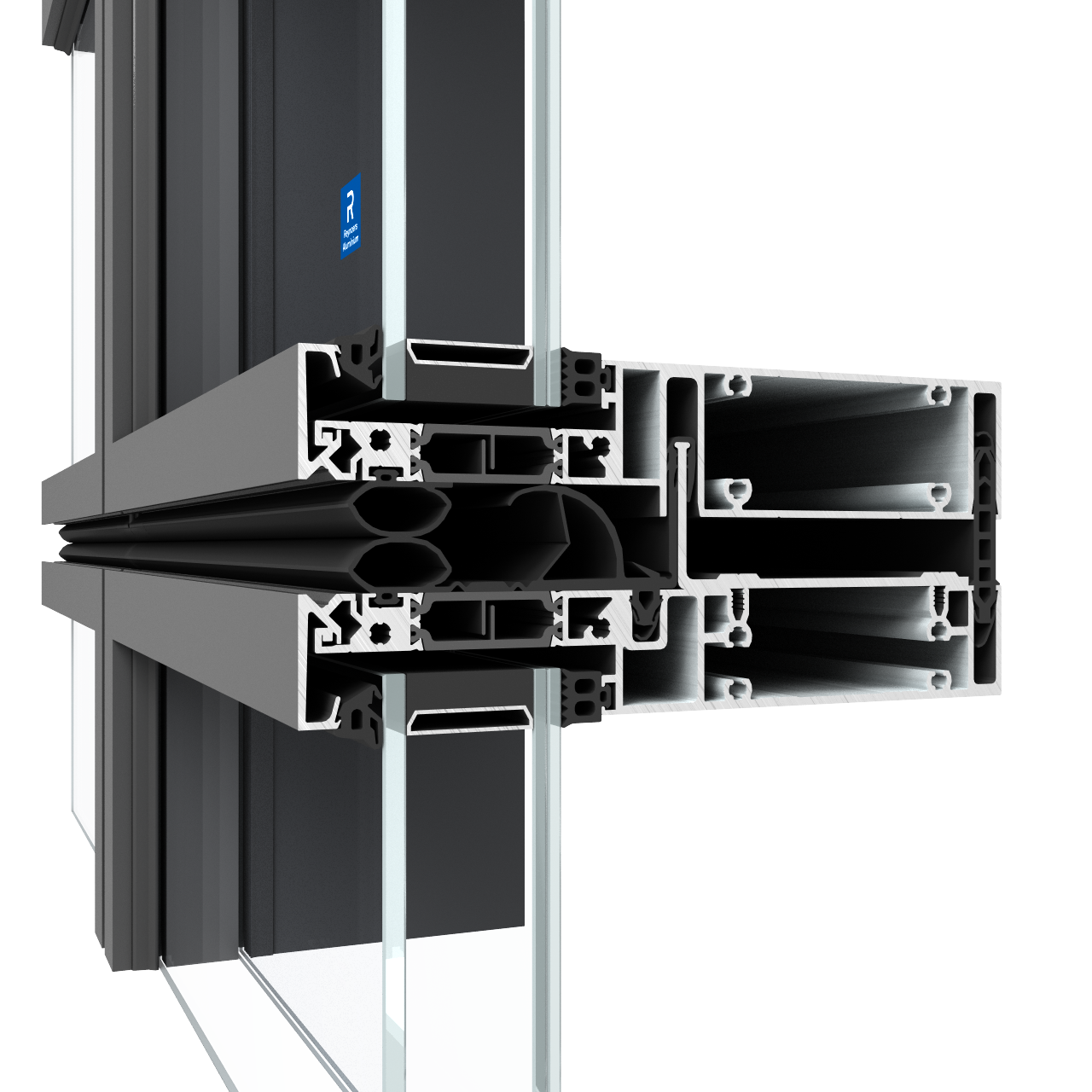

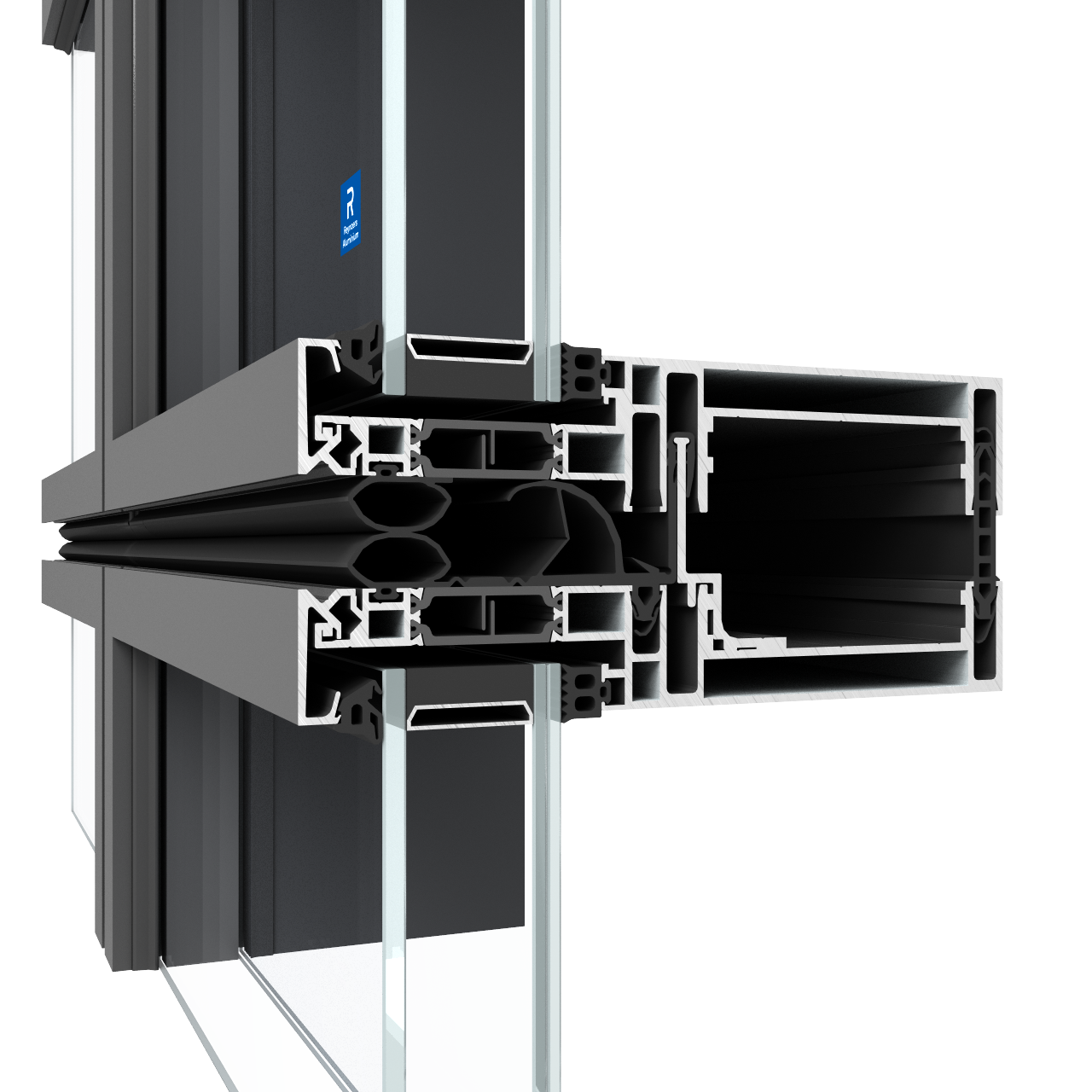

The Industrial variant is available with every type of glazing but is manufactured in a faster, more efficient way.
Product options
Personalise Curtain walls ElementFaçade 7 with the following options.
Concealed Drainage
No more plastic cover caps, enjoy those clean lines
Glass Corner
Glass to glass connection without profiles obstructing the view
Clip on cover cap
Choose the look that fits your project.
Solar Shading
Options for passive cooling.
Finish and colours
Choose from a palette of up to 450 colours and from many types of surface finishes – from matte, through satin and metallic, to textures and wood-like coatings.
Technical details
- Thermal insulation
- High
- Uf = 1.3 W/m²K
- Tightness
- Extreme
- AE1200 (1200 Pa) / RE1200 (1200 Pa) / 2400 Pa
360°
Drag to rotate
- Acoustics
- High
- Rw(C;Ctr) = 43 (-2;-4) dB
DigiTrace
Easy access to the digital product passport
A unique item identifier provides access to a wealth of information in seconds, eliminating the need for manual searches. A quick scan provides instant access to all system and technical details specific to the component, as well as documentation, certificates and manufacturer contact information.
Panoramic windows in an elegant black profile
Easy access to the digital product passport
A unique item identifier provides access to a wealth of information in seconds, eliminating the need for manual searches. A quick scan provides instant access to all system and technical details specific to the component, as well as documentation, certificates and manufacturer contact information.
