Aluminum windows SlimLine 38

Light, elegance and comfort

Find out more

Highest quality without compromise

Light, Elegance and Comfort

Its slender and user-friendly design makes the SlimLine 38 high-insulation system the perfect fit for any contemporary project. The durable aluminium windows and doors offer unlimited design freedom thanks to their multiple minimalistic variants.

Download the brochure

Steel look doors in a variety of styles

Suits modern new-builds as well as renovations

High thermal insulation

Explore all the variants

Infinite possibilities

01. Design

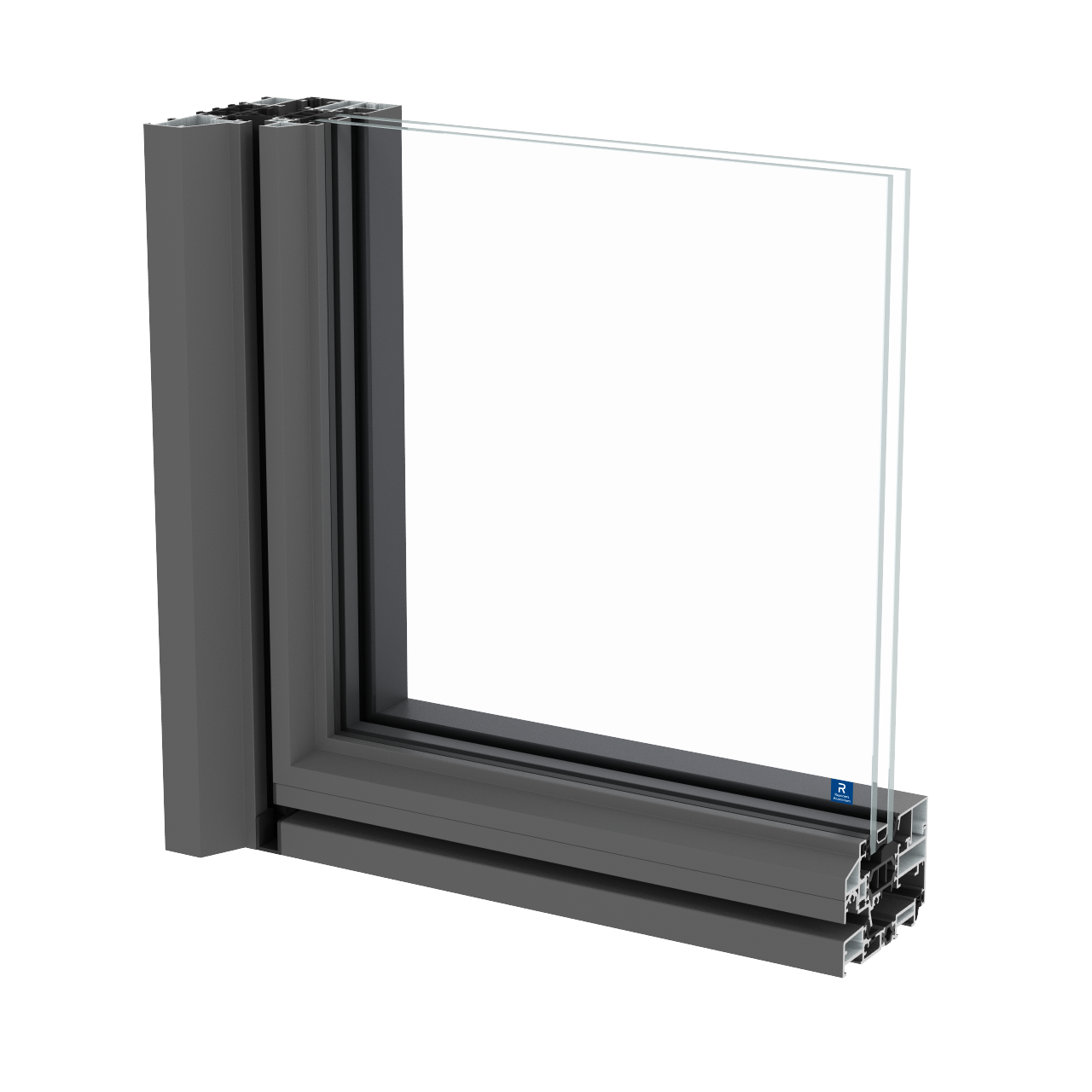

This product has been developed to mimic the slender look of steel windows, and the Classic variant sports an inclined surface.

This product has been developed to mimic the slender look of steel windows, and the Cubic variant sports a stepped surface.

This product has been developed to mimic the slender look of steel windows, and the Ferro variant features sharp straight lines and shadow gaps.

02. Energy

This product line spans a large range of insulation values. The standard variant is already sufficient in a lot of regions, but the High Insulation variant improves this even further.

101985_EmpireHouse5

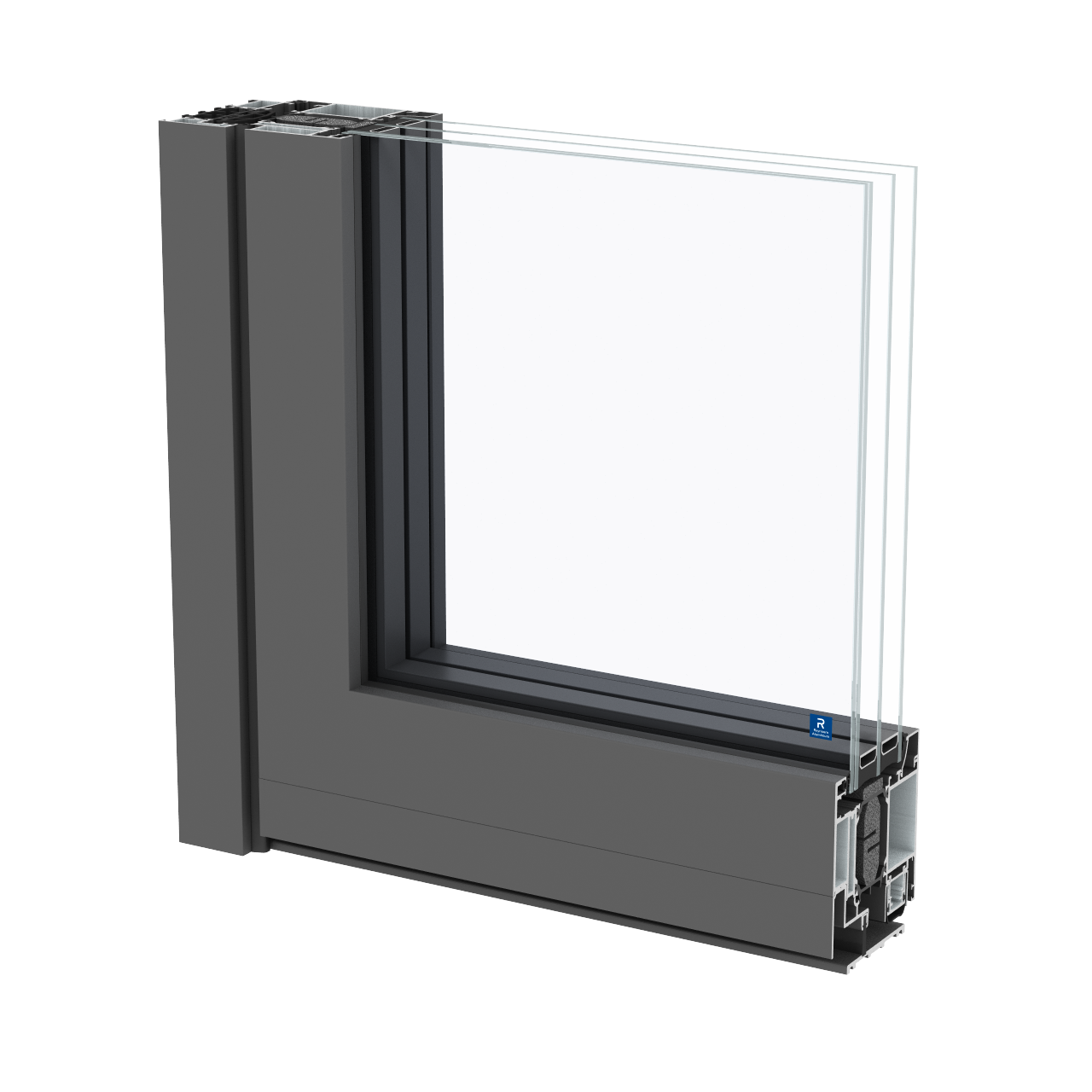

126622_SL-38-HI-Functional-detail
03. Safety
ReynaersUltraSlimSL38_Thumbnail
126622_SL-38-HI-Functional-detail

Product options

Concealed Hinges

The details are the design, concealed hinges are the finishing touch.

Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

Flyscreen

Enjoy cool summer evenings, without losing sleep.



Balustrade

Safety can equal beauty.



*Performance and properties depend on size, profile combinations, hardware and infill choices. Please contact your Reynaers Aluminium representative for more specific information.

  • We offer WhatsApp Bussiness
Finishing options

Unparalleled range of colours and finish types

Looking for another color?

You can choose from a palette of up to 450 colours.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v
Parameters

Technical details

Thermal insulation
Uf = 1.9 W/m²K
Air-Water-wind
High
Height vent
Min 600 mm
Max 2800 mm
Acoustics
Rw(C;Ctr) = 45(-1,-5) dB
Frame-Vent Width Open In
Min 33,5 mm
Burglar resistance
PAS 24 - RC2

Performance

Energy

Thermal insulation
Uf - 1.9 W/m²K
Uw - 0.96 W/m²K

Comfort

Air tightness
Class 4 (600Pa)
Water tightness
Class 9A (600Pa)
Wind load resistance
Class C4 (1600Pa)
Acoustics - Rw(C;Ctr)
45(-1,-5) dB
Opening & closing resistance
Class 3

Safety

Fire resistance

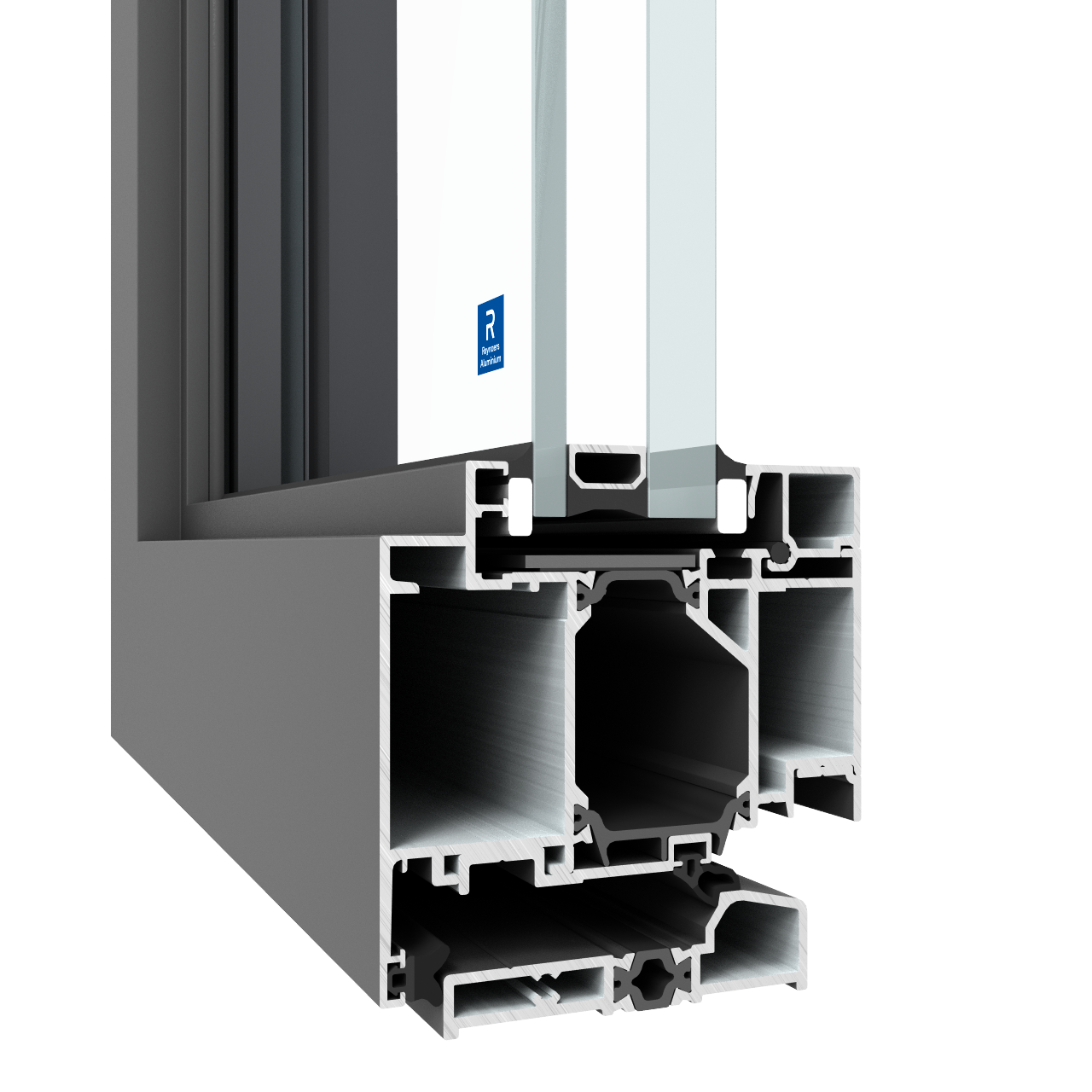

EI₁ 30 - EI₂ 30 - EW 30
Burglar resistance
PAS 24 - RC2

Properties

Max. dimensions & weight

Min. height of vent
600 mm
Max. width of vent
450 mm
Max. height of vent
2800 mm
Max. weight of vent
170 kg
Min. width of vent
600 mm

Sightlines

Min. frame width (inward opening)
33,5 mm
Min. width T-profile
48 mm
Min. vent width (inward opening)
23 mm
Profile design slope
24.2 degrees
Min. frame-vent width (inward opening)
67 mm
Depth frame
99 mm
Min. frame width (outward opening)
29 mm
Depth Vent
86 mm
Min. vent width (outward opening)
60,5 mm
Depth frame-vent
99 mm
Min. frame-vent width (outward opening)
80 mm

Glazing

Rebate height
13,5 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - Glazing bead
Parameters

Technical details

aluminiowe systemy okienne i drzwiowe
Thermal insulation
Uf = 0.99 W/m²K
Air-Water-Wind
Extreme
Acoustics
Extreme
Burglar resistance
RC2 - RC3
Sash height
Min 600 mm
Max 2800 mm
Frame-Vent Width Open In
Min. 104 mm

Efficiency

Energy

Thermal insulation
Uf 0.99 W/m²K
Uw 0.8 W/m²K
Uw Dependencies
Frame-vent: Ug 0.6W/m²K, warm edge spacer, @1.23x1.48m (104mm sight line), 48mm glass

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
TuTi: 46(-1;-4) dB DC: 44(-2;-4) dB
Water tightness
Class E900 (900Pa)
Opening & closing resistance
Class 3
Wind load resistance
Class C4 (1600Pa)

Safety

Burglary resistance
RC2 - RC3

Properties

Max. dimensions and weight

Min. height of vent
600 mm
Max. width of vent
1200 mm
Max. height of vent
2800 mm
Max. weight of vent
200 kg
Min. width of vent
550 mm
Max. weight of vent
800 kg

Sightlines

Min. frame width (inward opening)
60 mm
Min. frame-vent width (outward opening)
140 mm
Min. vent width (inward opening)
37 mm
Min. width T-profile
87 mm
Min. frame-vent width (inward opening)
104 mm
Depth frame
97 mm
Min. frame width (outward opening)
27 mm
Depth Vent
107 mm
Min. vent width (outward opening)
113 mm
Depth frame-vent
107 mm

Glazing

Rebate height
27 mm
Max. glass thickness - frame/element
78 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - Glazing bead
Min. glass thickness - vent
30 mm
Min. glass thickness - frame/element
20 mm
Max. glass thickness - vent
88 mm
Parameters

Technical details

aluminiowe systemy okienne i drzwiowe
Thermal insulation
Uf = 0.99 W/m²K
Air-Water-Wind
Extreme
Acoustics
Extreme
Burglar resistance
RC2 - RC3
Sash height
Min 600 mm
Max 2800 mm
Frame-Vent Width Open In
Min. 104 mm

Efficiency

Energy

Thermal insulation
Uf 0.99 W/m²K
Uw 0.8 W/m²K
Uw Dependencies
Frame-vent: Ug 0.6W/m²K, warm edge spacer, @1.23x1.48m (104mm sight line), 48mm glass

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
TuTi: 46(-1;-4) dB DC: 44(-2;-4) dB
Water tightness
Class E900 (900Pa)
Opening & closing resistance
Class 3
Wind load resistance
Class C4 (1600Pa)

Safety

Burglary resistance
RC2 - RC3

Properties

Max. dimensions and weight

Min. height of vent
600 mm
Max. width of vent
1200 mm
Max. height of vent
2800 mm
Max. weight of vent
200 kg
Min. width of vent
550 mm
Max. weight of vent
800 kg

Sightlines

Min. frame width (inward opening)
60 mm
Min. frame-vent width (outward opening)
140 mm
Min. vent width (inward opening)
37 mm
Min. width T-profile
87 mm
Min. frame-vent width (inward opening)
104 mm
Depth frame
97 mm
Min. frame width (outward opening)
27 mm
Depth Vent
107 mm
Min. vent width (outward opening)
113 mm
Depth frame-vent
107 mm

Glazing

Rebate height
27 mm
Max. glass thickness - frame/element
78 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - Glazing bead
Min. glass thickness - vent
30 mm
Min. glass thickness - frame/element
20 mm
Max. glass thickness - vent
88 mm
Parameters

Technical details

aluminiowe systemy okienne i drzwiowe
Thermal insulation
Uf = 0.99 W/m²K
Air-Water-Wind
Extreme
Acoustics
Extreme
Burglar resistance
RC2 - RC3
Sash height
Min 600 mm
Max 2800 mm
Frame-Vent Width Open In
Min. 104 mm

Efficiency

Energy

Thermal insulation
Uf 0.99 W/m²K
Uw 0.8 W/m²K
Uw Dependencies
Frame-vent: Ug 0.6W/m²K, warm edge spacer, @1.23x1.48m (104mm sight line), 48mm glass

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
TuTi: 46(-1;-4) dB DC: 44(-2;-4) dB
Water tightness
Class E900 (900Pa)
Opening & closing resistance
Class 3
Wind load resistance
Class C4 (1600Pa)

Safety

Burglary resistance
RC2 - RC3

Properties

Max. dimensions and weight

Min. height of vent
600 mm
Max. width of vent
1200 mm
Max. height of vent
2800 mm
Max. weight of vent
200 kg
Min. width of vent
550 mm
Max. weight of vent
800 kg

Sightlines

Min. frame width (inward opening)
60 mm
Min. frame-vent width (outward opening)
140 mm
Min. vent width (inward opening)
37 mm
Min. width T-profile
87 mm
Min. frame-vent width (inward opening)
104 mm
Depth frame
97 mm
Min. frame width (outward opening)
27 mm
Depth Vent
107 mm
Min. vent width (outward opening)
113 mm
Depth frame-vent
107 mm

Glazing

Rebate height
27 mm
Max. glass thickness - frame/element
78 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - Glazing bead
Min. glass thickness - vent
30 mm
Min. glass thickness - frame/element
20 mm
Max. glass thickness - vent
88 mm
