Sliding doors SlimPatio 68

Comfort and panoramic view

Find out more

Top quality without compromise

Comfort and panoramic view

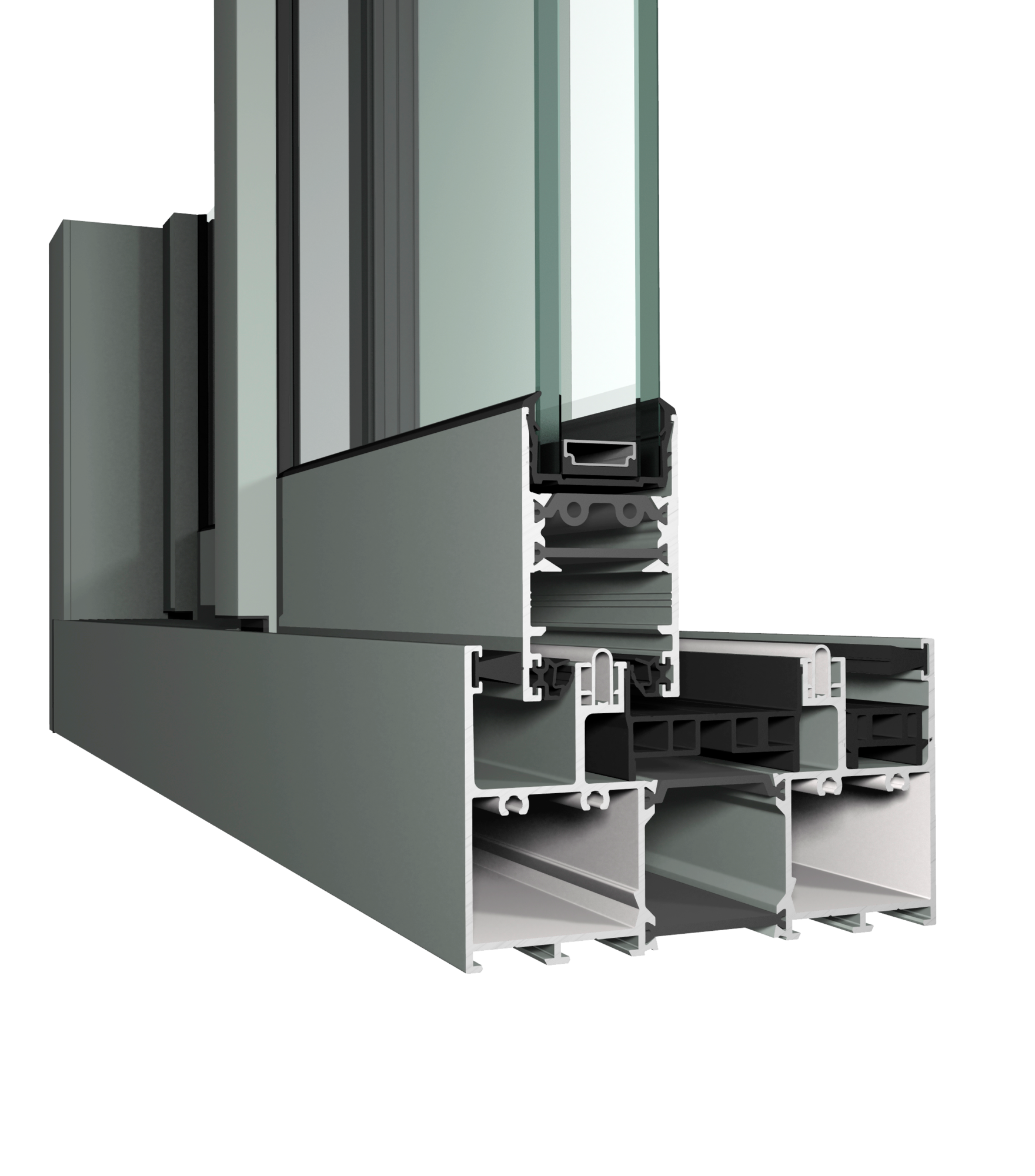

Slim Patio 68 is a highly insulated sliding system with narrow profiles and a hidden frame, combining functionality with elegance. Thanks to its exceptionally narrow profiles, it allows for maximum access to natural light and provides panoramic views. Thanks to its technological advancement, it guarantees very good, wind- and water-tightness parameters, as well as thermal insulation, in accordance with the highest standards.

The SlimPatio 68 system gives you freedom of design and allows you to create modern spaces in which access to light is combined with the highest comfort.

Minimalist design

Wide range of constructions

Hidden door frame that fits best into modern construction

Explore all variants

Infinite possibilities

01. Product group
02. Other

Product personalization options

Narrow middle stop

Reducing the visible profile line where it matters most.

Low threshold

Easy access, neat appearance.

Gutter

Better water drainage, without additional obstacles.

Hidden Drain

No more plastic caps, enjoy clean design.

Balustrade

Safety and beauty can go hand in hand.

*Available options depend on profile selection and configuration. Please contact Profal Kielc consultant.

Finishing options

An unparalleled range of colors and finishes

Looking for a different color?

You can choose from a palette of up to 450 colors.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v

Looking for a different color?

You can choose from a palette of up to 450 colors.
Parameters

Technical details

Thermal insulationa
High
Tightness
Mean
Acoustics
High
Rw(C;Ctr) = 40 (-2;-4) dB
Burglary resistance
High
RC2
Maks. mass
Sliding door leaf = 250 kg
constantly = 250 kg

Efficiency

Energy

Thermal insulation
High Uw = 1.4 W/m²K

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
40(-2;-4) dB
Waterproof
Class 8A (450Pa)
Resistance when opening and closing
Class 3
Wind load resistance
Class C4 (1600Pa)

Safety

Burglary resistance
RC2

Properties

Maks. dimensions and weight

Min. leaf height
700 mm
Maks. leaf width
2300 mm
Maks. leaf height
3000 mm
Maks. wing mass
250 kg
Maks.leaf width
700 mm
Maks. mass of the solid part
250 kg

Visible lines

Min. width 4 panes
74 mm
Frame-wing depth
120 mm
Min. cross section width
35 mm
Frame depth - monorail
64 mm
Min. width of the T profile
55 mm
2-rail frame depth
120 mm
Min. threshold height
0 mm
3-rail frame depth
176 mm
Wing depth

38 mm

Glazing

Rebate height
18 mm
Glazing method
Dry glazing - Envelope glazing - Structural bonded glazing
Min. glass thickness - wing
24 mm
Max. glass thickness - sash
38 mm

Panoramic windows in an elegant black profile

reynaers aluminium profielen


The unique item identifier provides access to a wealth of information in seconds, eliminating the need for manual searching. A quick scan provides immediate access to all system and technical details specific to the item, as well as documentation, certifications and manufacturer contact information.
