Sliding doors ConceptPatio 130

Functionality and aesthetics
Top quality without compromise

Functionality and aesthetics

Concept Patio® 130 is a thermally insulated lift-and-slide system that meets the highest standards of insulation, stability and security. It is fully compatible with the CS 77 system.

The CP 130 system is available in various opening variants, and the model with a lowered threshold provides a solution for improving building accessibility.

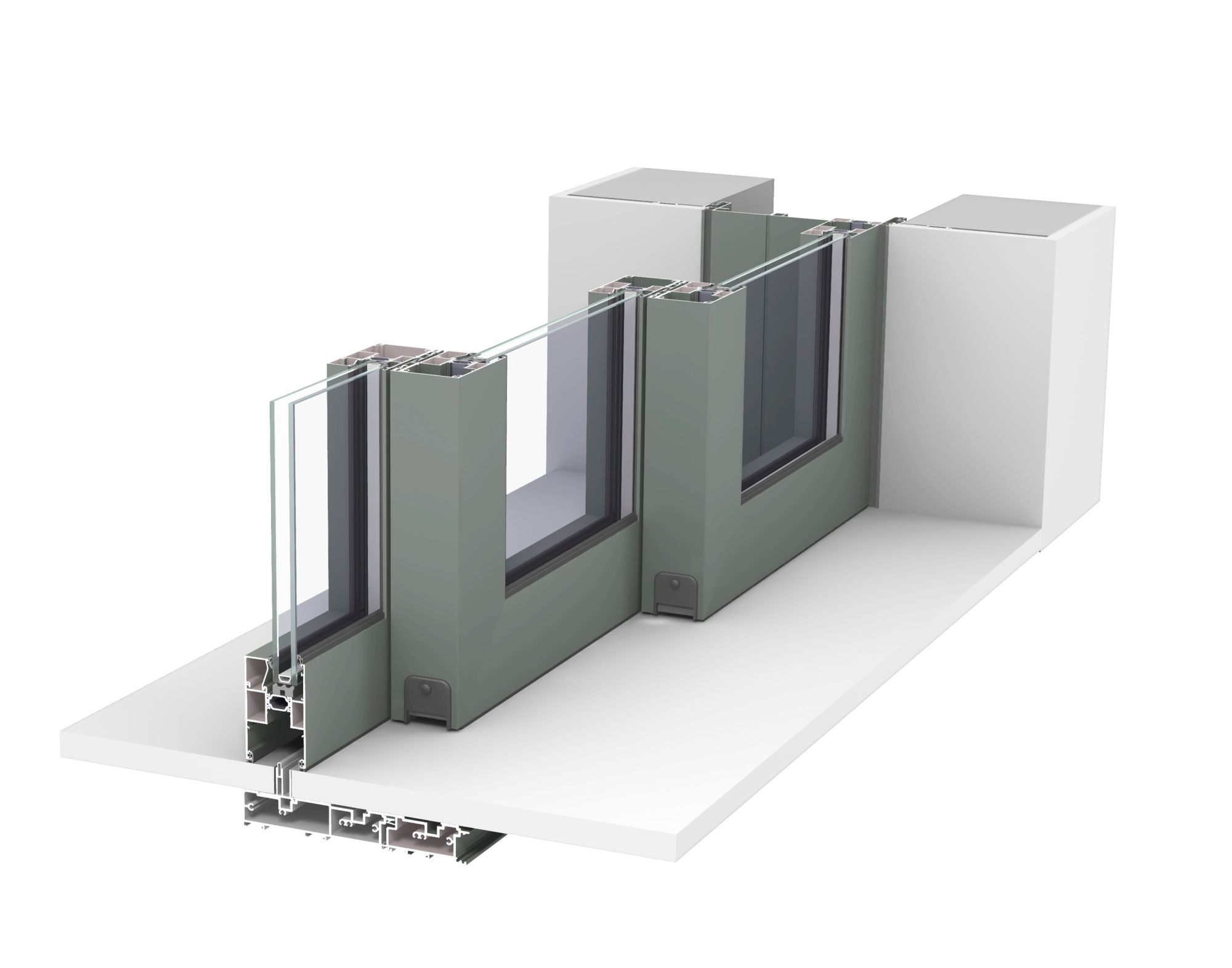

Innovative technology makes it possible to open the door without the need for fixed corner elements, offering a seamless transition between the interior of the building and the outside world.

This makes the CP 130 system an ideal solution for viewing rooms.

This robust system makes it possible to construct large yet stable windows and sliding doors, with a maximum sash weight of 300 kg. Not without significance is also the beautiful-looking slender center section. In addition, the CS 130 system is a class 2 burglar-proof solution.

Excellent balance between performance and affordability

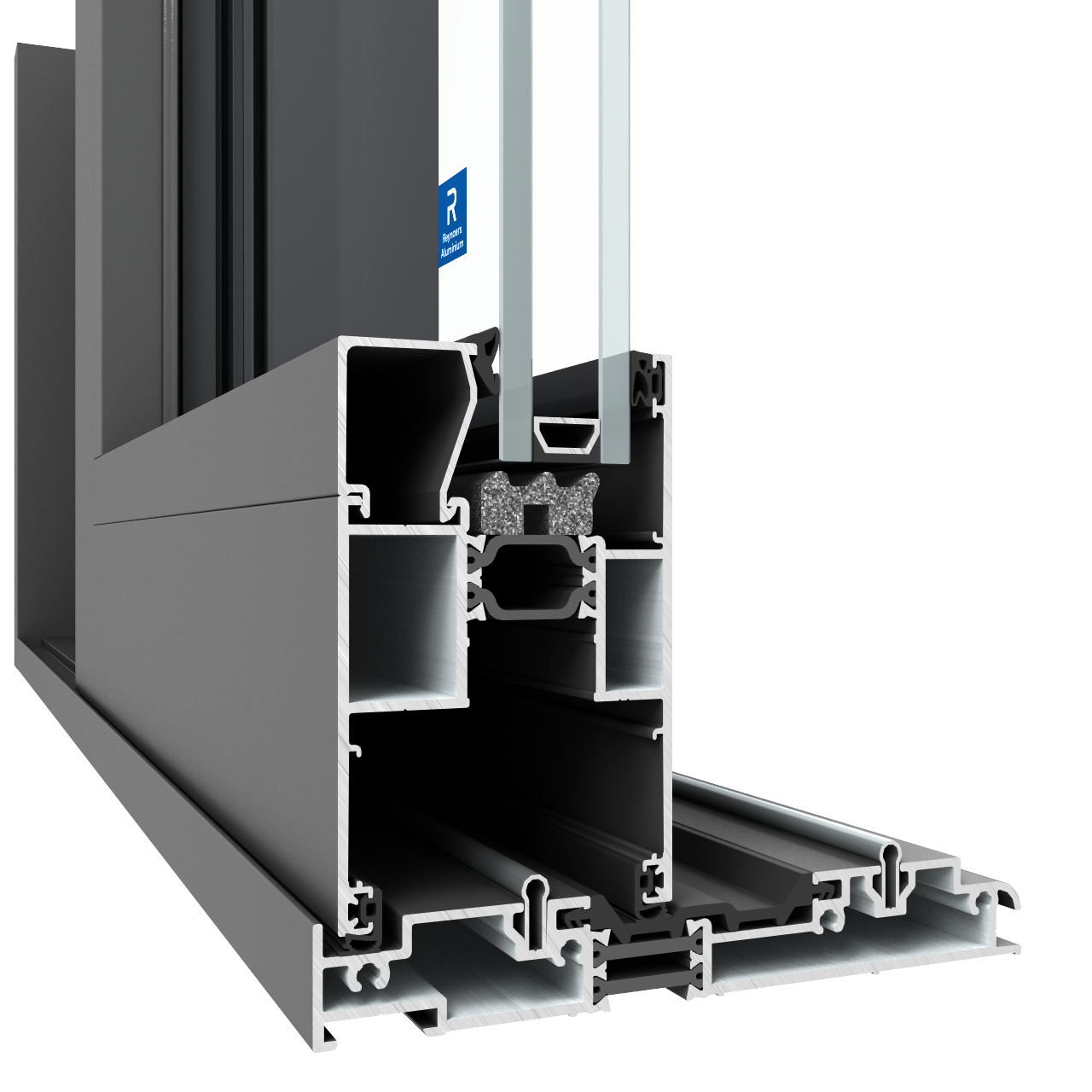

Unique low threshold renovation-friendly profile

Very complete offer with various opening types.

Explore all variants

Infinite possibilities

01. Type

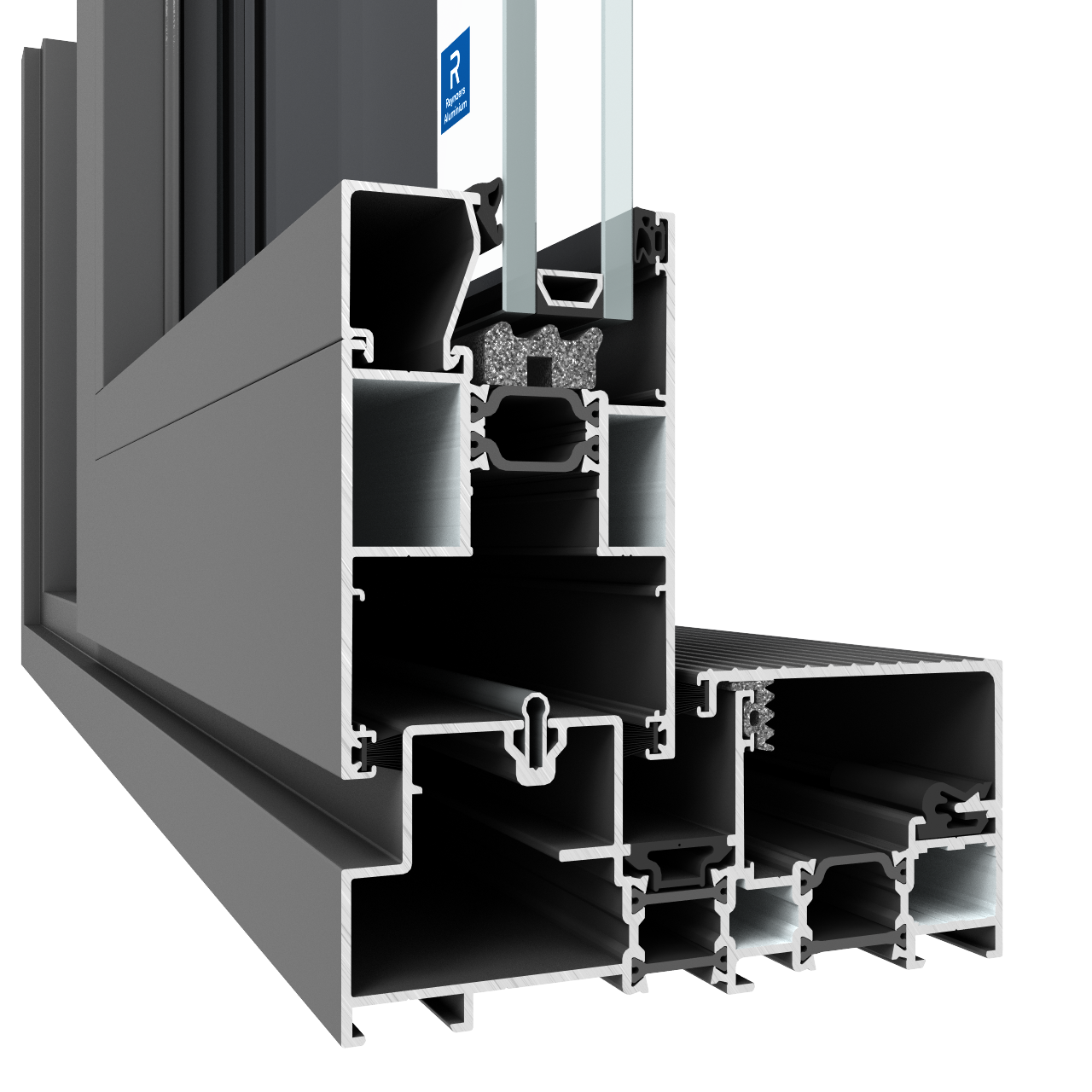

The lift and slide variant of this system offers improved performances, and heavier vent weights.

02. Energy
03. Safety
04. Other

Podstawowy wariant oferuje symetryczny projekt z tymi samymi profilami dla skrzydeł stałych i przesuwnych dla drzwi 2-szynowych.

Product options

Slim Chicane

Increasing the transparency of the window where it is most visible.

Glass Corner

Glass to glass connection without profiles obstructing the view.

Softclose

Combines safety and comfort.

Concealed Drainage

No more plastic cover caps, enjoy those clean lines.

Balustrade

Safety can equal beauty.

*Performance and properties depend on size, profile combinations, hardware and infill choices. Please contact Profal Kielc.

Finishing options

Unparalleled range of colors and finish types

Looking for a different color?

You can choose from a palette of as many as 450 colors.
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
aluminiowe systemy okienne i drzwiowe
v

Looking for a different color?

You can choose from a palette of as many as 450 colors.
Parameters

Technical details

Thermal Insulation
Medium
Air-Water-Wind
High
Acoustics
High
Rw(C;Ctr) = 38(-2;-4) dB
Burglar Resistance
PAS 24-RC2
Max weight
Vent = 300 kg
Fixed = 200 kg

Performance

Energy

Thermal insulation
Uw = 1.4 W/m²K

Comfort

Air tightness
Class 4 (600Pa)
Acoustics - Rw(C;Ctr)
39(-2;-4) dB
Water tightness
Class 7B (300Pa)
Opening & closing resistance regulation
Class 4
Wind load resistance
Class B5(2000Pa)

Safety

Burglar resistance
PAS 24 -RC2

Properties

Max. dimensions & weight

Min. height of vent
500 mm
Max. width of vent
2700 mm
Max. height of vent
2700 mm
Max. weight of vent
300 kg
Min. width of vent
700 mm
Max. weight of fixed part
300 kg

Sightlines

Min. width 4-pane
194 mm
Depth frame-vent
139 mm
Min. width meeting section
50 mm
Depth frame monorail
130 mm
Min. width T-profile
50 mm
Depth frame 2-rail
130 mm
Min. height treshold
4 mm
Depth frame 3-rail
210 mm
Depth Vent
59 mm

Glazing

Rebate height
25 mm
Min. glass thickness - vent
4 mm
Glazing method
Dry glazing - Siliconized glazing - Internal glazing - External glazing - Glazing bead - Structural Glued Glazing
Max. glass thickness - vent
43 mm

Panoramic windows in elegant black profile

reynaers aluminium profielen

A unique component identifier provides access to a wealth of information in seconds, eliminating the need for manual searches. A quick scan provides instant access to all system and technical details specific to the component, as well as documentation, certifications and manufacturer contact information.
